Objective

This guide explains how to use the Work Centre screen in ManufApp to:

• Select the required machine or work centre

• View production jobs linked with a Sales Order or Work Order

• Identify the item currently selected for production

• Check input material issued and material required

• View production entries already recorded against the selected job

Overview

The Work Centre screen provides shopfloor-level visibility for production execution. Once a machine is selected, users can view the jobs planned for that machine and check the related material and production details from one screen.

The same process applies whether the job is created against a:

• Sales Order

• Work Order

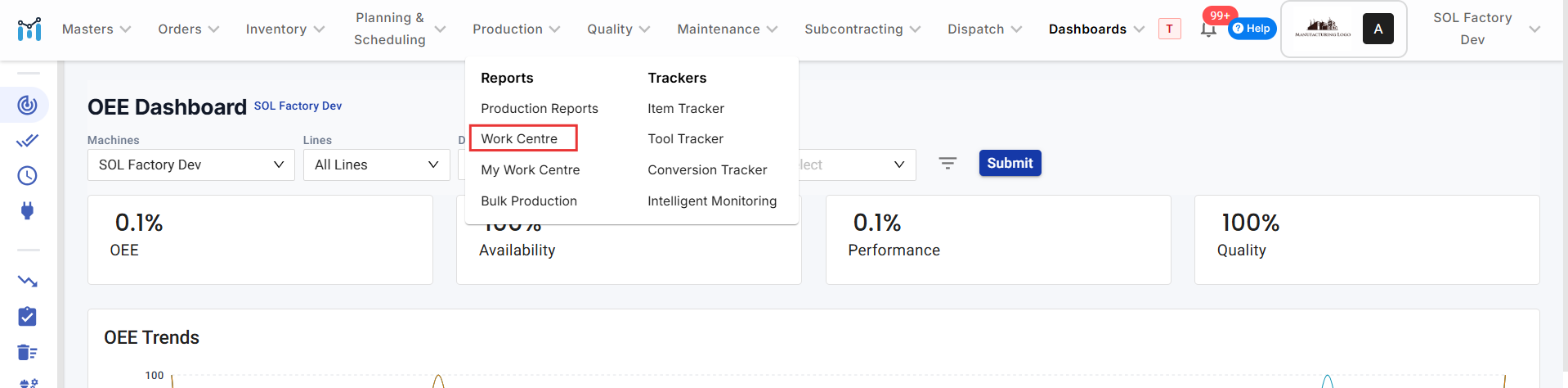

Navigation

Go to:

Production → Work Centre

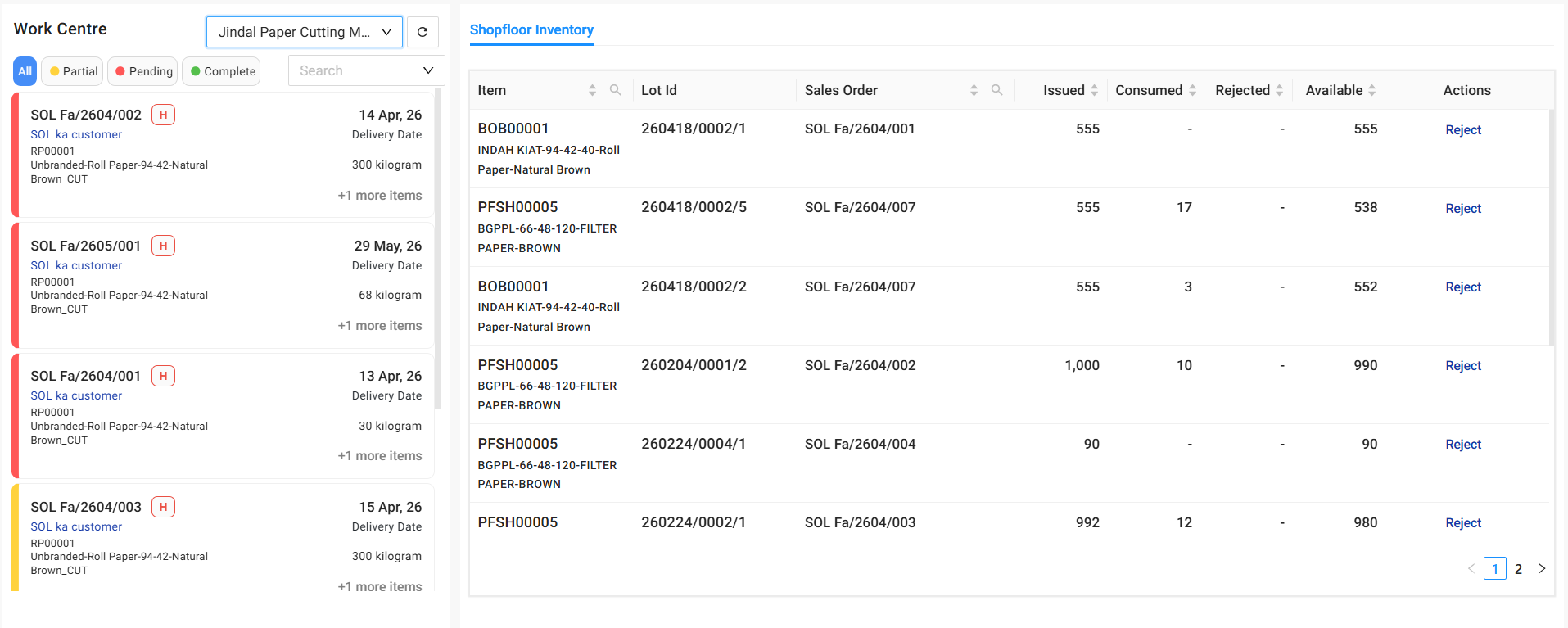

The Work Centre screen opens with the machine selection option and job details.

Step 1: Select the Required Machine

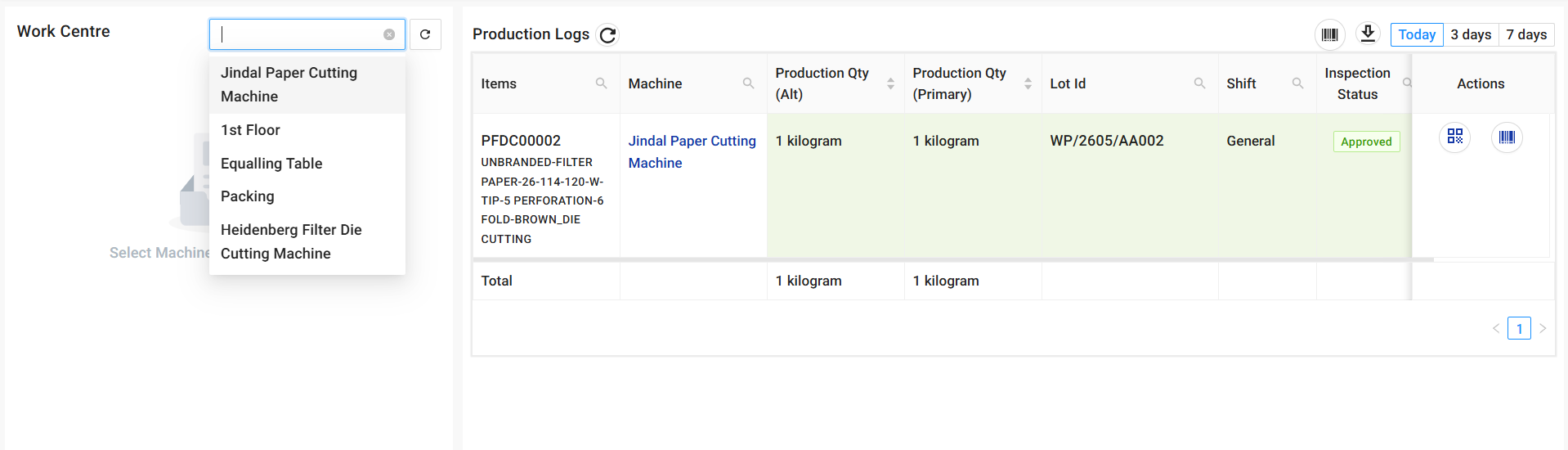

At the top-left side of the screen, select the required machine from the dropdown.

Example

Jindal Paper Cutting Machine

After selecting the machine, the system displays the production jobs available for that machine in the left panel.

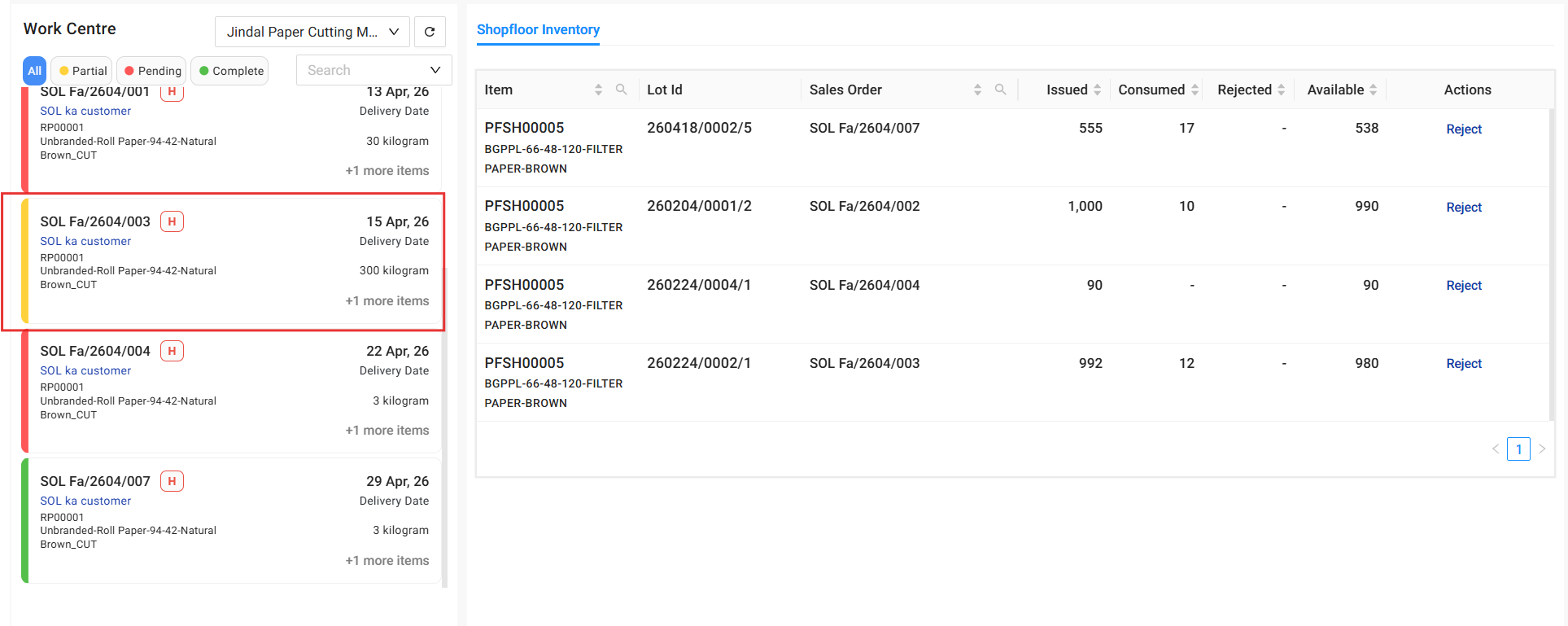

Step 2: View Sales Order or Work Order Jobs

The left panel shows the jobs assigned to the selected machine.

Depending on the production process, the job may be linked with a Sales Order or a Work Order.

Information Visible on the Job Card

Example

Selected Sales Order:

SOL Fa/2604/003

Items visible under the selected order:

PFDC00002, this means that 11 kilograms have been produced against the required quantity of 700 kilograms.

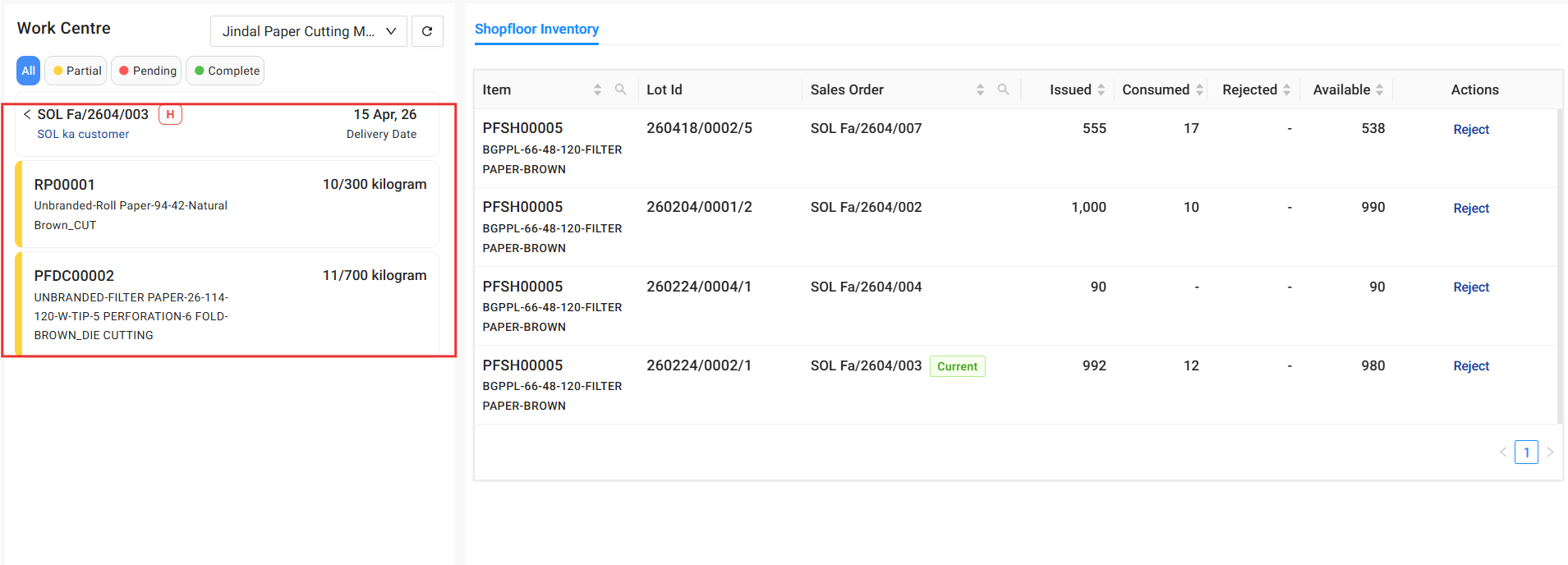

Step 3: Select the Required Item

A single Sales Order or Work Order may contain more than one item for production.

Click the required item from the left panel to view its related details on the right side.

Example

When PFDC00002 is selected, the right-side tabs display information related to this item, such as:

• Input material issued for producing PFDC00002

• Material still required to complete its production

• Production entries already recorded for PFDC00002

The selected item card is highlighted, helping the user confirm which item details are currently being viewed.

Step 4: Use Job Status Filters

The status filters at the top of the left panel help users find jobs based on their production progress.

Example

A job showing 11 / 700 kilogram is still incomplete and can be tracked under the relevant incomplete job status.

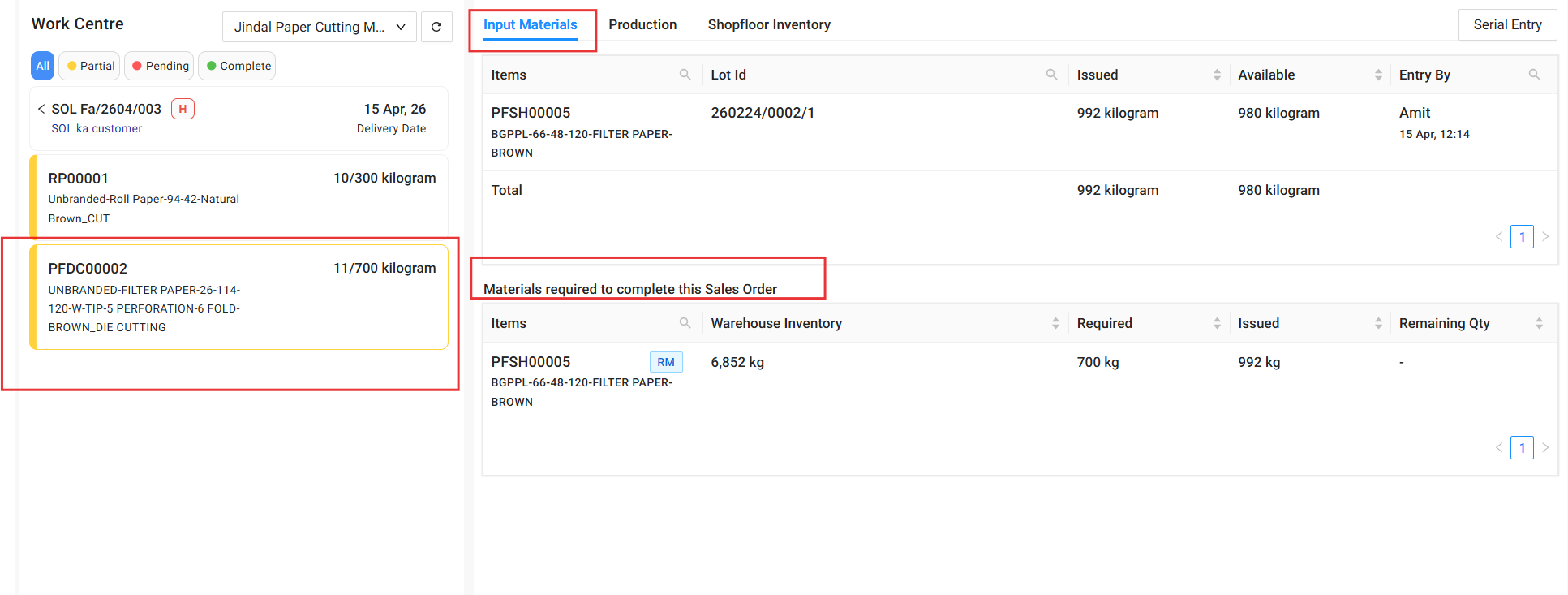

Step 5: View Input Materials

After selecting the required Sales Order / Work Order item, open the Input Materials tab.

This tab shows the raw material or input material required to complete production for the selected item.

A. Issued Input Material Details

The upper table displays input material already issued for the selected production job.

Example

This means that 992 kilograms of the input material were issued, and 980 kilograms are still available for further production use.

B. Materials Required to Complete the Selected Job

The lower table displays the material requirement for completing the currently selected Sales Order / Work Order item.

Example

This allows the user to check whether sufficient material has already been issued to complete the selected job.

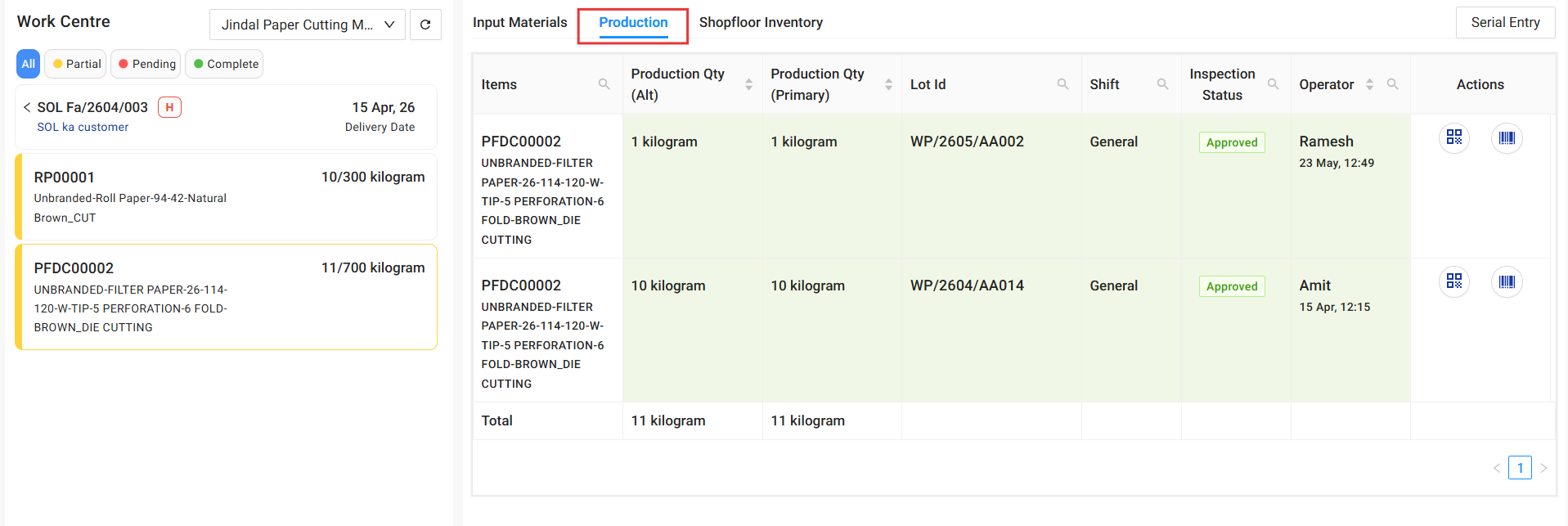

Step 6: View Production Entries

Open the Production tab.

This tab displays production entries already recorded against the selected Sales Order / Work Order item.

Information Visible in the Production Tab

Example Production Entries

For the selected item PFDC00002, the following production entries are visible:

Total Production

At the bottom of the Production table, the system displays the total quantity produced.

This total is also reflected on the item card in the left panel as:

11 / 700 kilogram

This means 11 kilograms have been completed out of the total required quantity of 700 kilograms.

Important Points

• Select the correct machine before checking production job details.

• Select the correct Sales Order / Work Order and item before reviewing materials or production entries.

• The quantity shown on the item card represents Produced Quantity / Required Quantity.

• The Input Materials tab helps verify whether material is available for continuing production.

• The Production tab shows the recorded production quantity, lot details, operator and inspection status.

• The same screen flow can be followed for jobs linked with either a Sales Order or a Work Order.

Conclusion

The Work Centre screen allows users to track machine-level production activity in one place. Users can select a production job linked with a Sales Order or Work Order, check the required and issued input materials, and review production entries already recorded for the selected item. This provides clear visibility of production progress before any further shopfloor action is performed.
