How to Add a New Critical to Quality (CTQ) Parameter in ManufApp
CTQ parameters help define inspection rules for key product characteristics (e.g., weight, dimensions). Adding them ensures quality checks are consistent and measurable across inspections.
๐ For a quick overview, see: What is a Critical to Quality (CTQ) parameter in ManufApp, and why is it important?

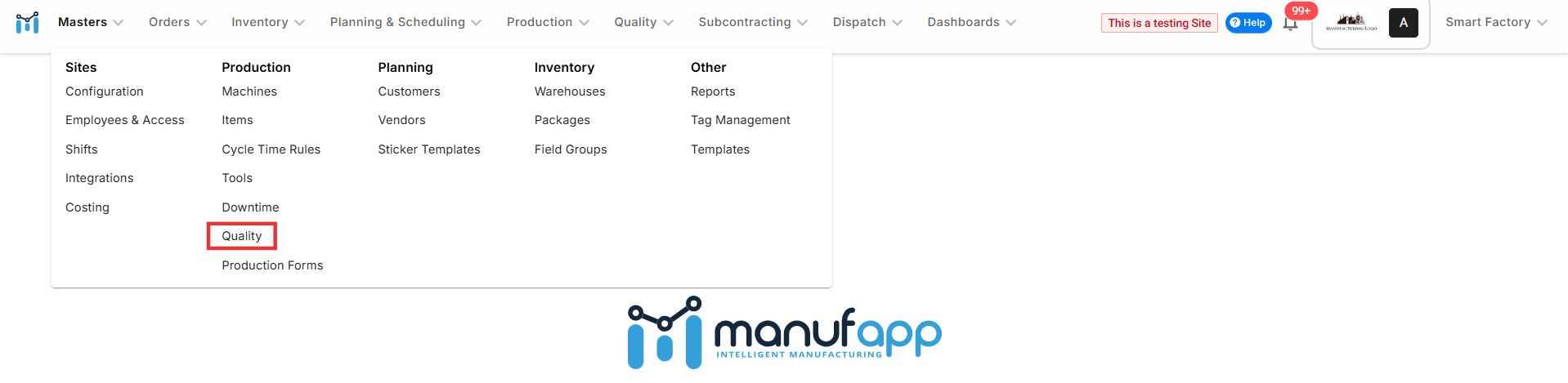

Step 1: Navigate to the Quality Module
Go to the top menu and click:
Masters โ Quality

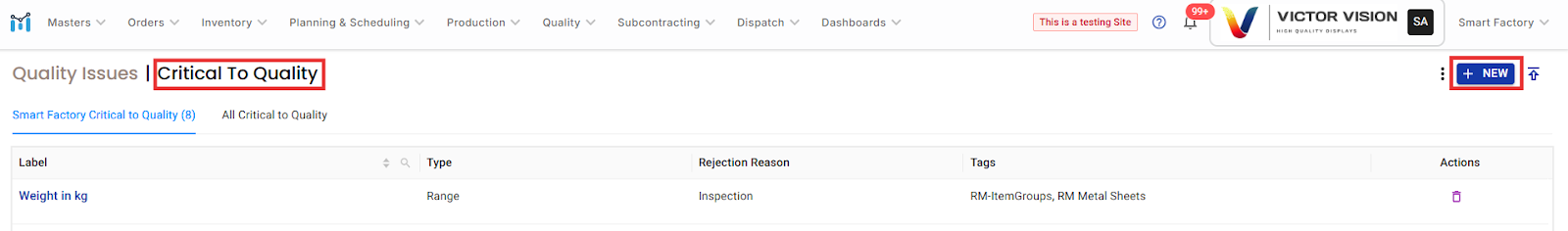

Step 2: Open the โCritical to Qualityโ Tab
Under the Quality Issues page, click the "Critical To Quality" tab to view existing CTQ parameters.
Step 3: Click on โ+ Newโ
Click the + NEW button on the right side of the page to start creating a new Critical to Quality parameter.

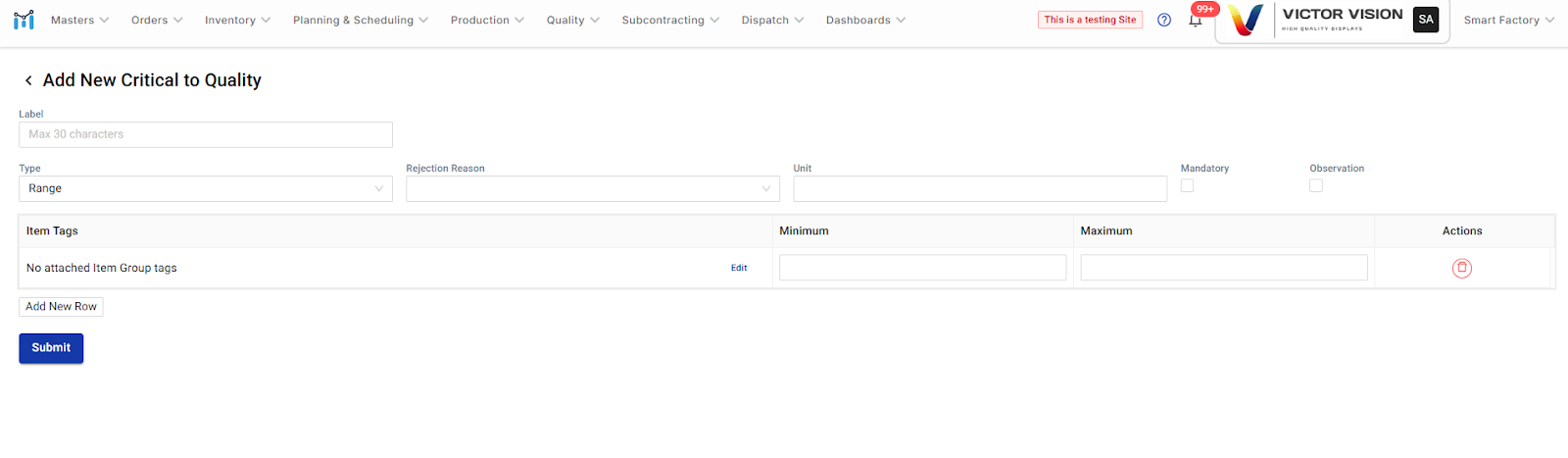

Step 4: Fill in Critical to Quality Details
In the Add New Critical to Quality form:
Label: Enter the name of the parameter (e.g., Weight in kg).
Type: Choose from Range, Dropdown, or Numeric.
Rejection Reason: Select a predefined reason like Inspection.
Unit: Enter the measurement unit (e.g., kg).
Item Tags: Tag the relevant item(s) or group(s).
Min / Max: Define the acceptable range of values.
You can also mark it as:
Mandatory: If it must always be checked
Observation: If itโs for data capture only

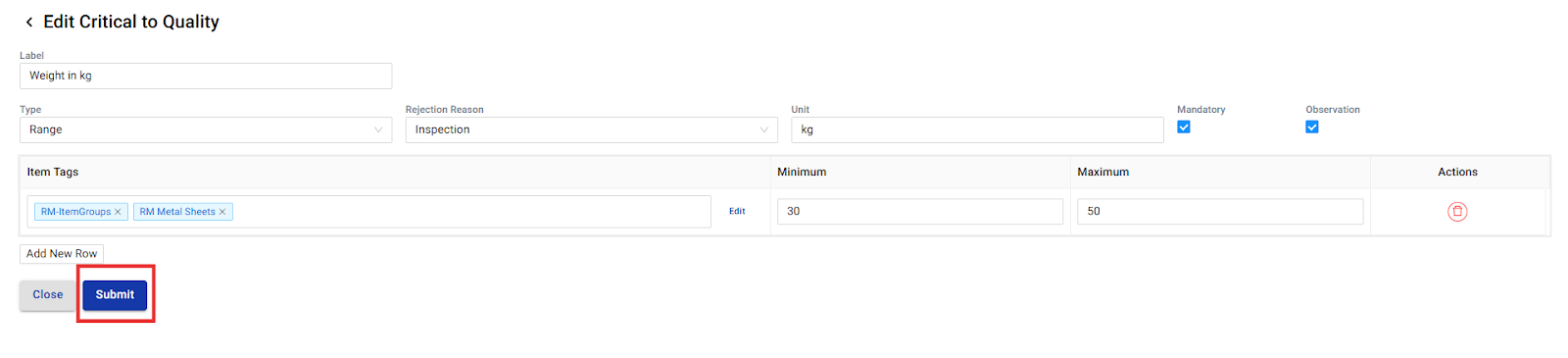

Step 5: Click Submit
Once all fields are filled, click the Submit button to save the CTQ parameter.
โ Done!
Your new CTQ parameter is now active and will be available during quality checks (like IQC or in-process inspections) for the tagged items.
๐ Make sure you know : How to Change QC Range to QC Parameter in ManufApp
