Objective

This guide explains how to create and manage Dispatch Orders (DOs) in ManufApp using the Dispatch Scheduling screen.

Step-by-Step Process

Option A — From Dispatch Scheduling

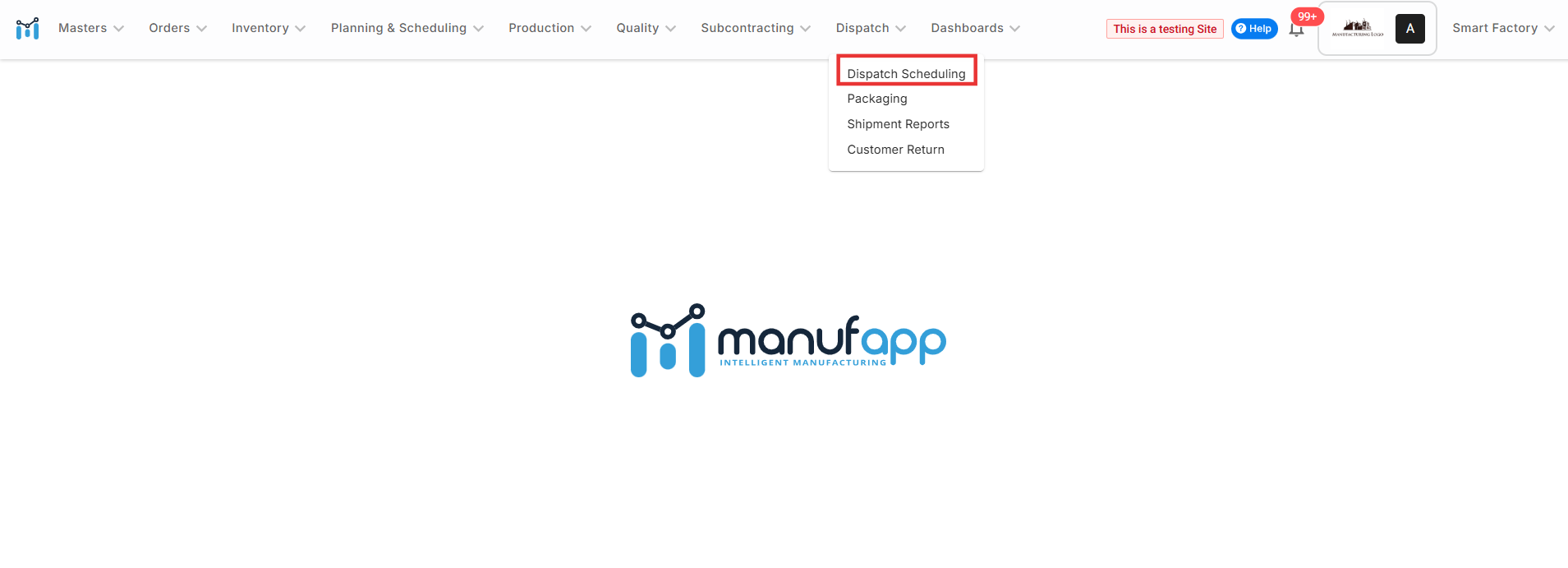

1) Open Dispatch Scheduling

• Navigate to Dispatch → Dispatch Scheduling from the top menu.



• The screen opens in calendar view, showing all scheduled dispatches for the selected month.

• Color codes indicate status:



• Pending (yellow)



• Partial (orange)



• Dispatched (green)

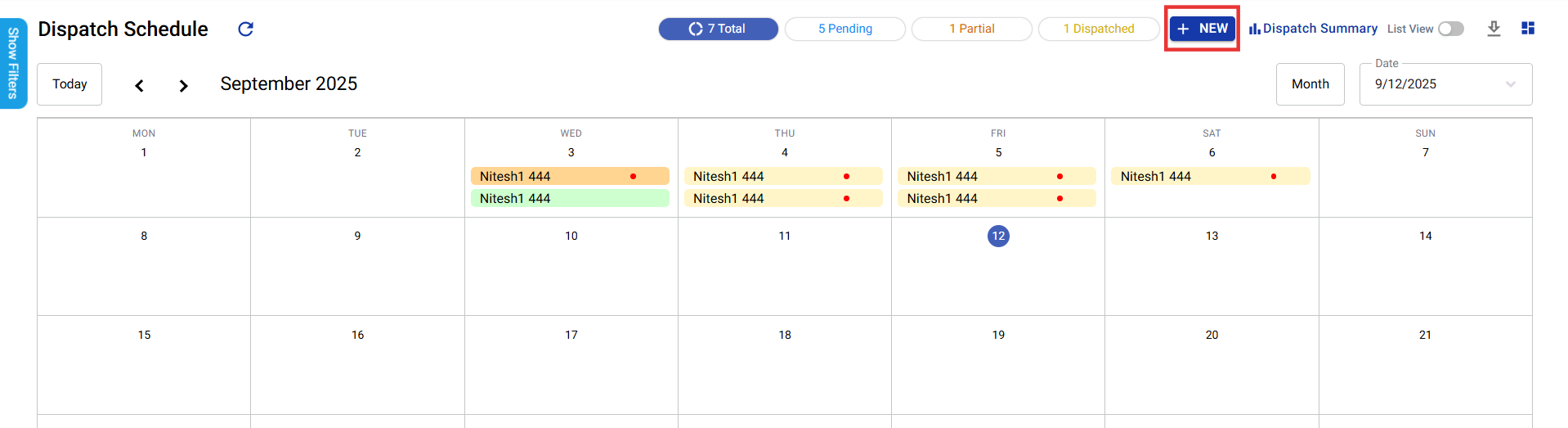

2) Create a New Dispatch Order

• On the Dispatch Schedule screen, click + New.

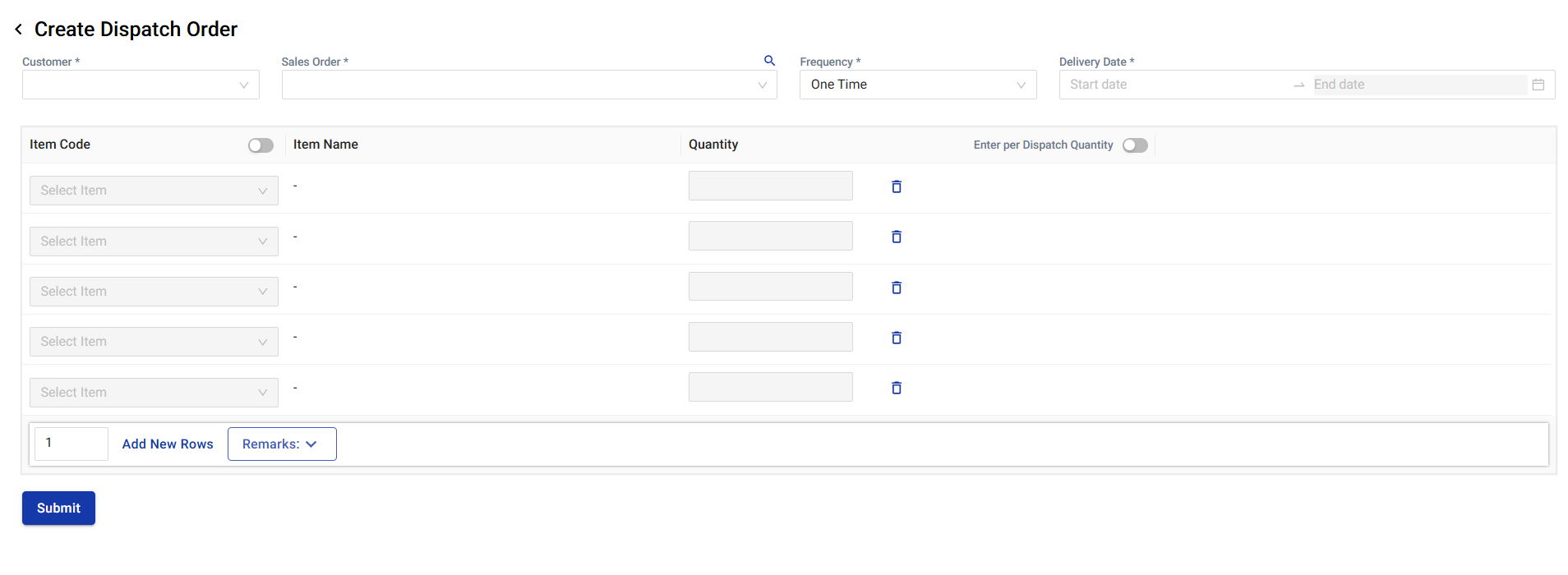

• A Create Dispatch Order form will appear.

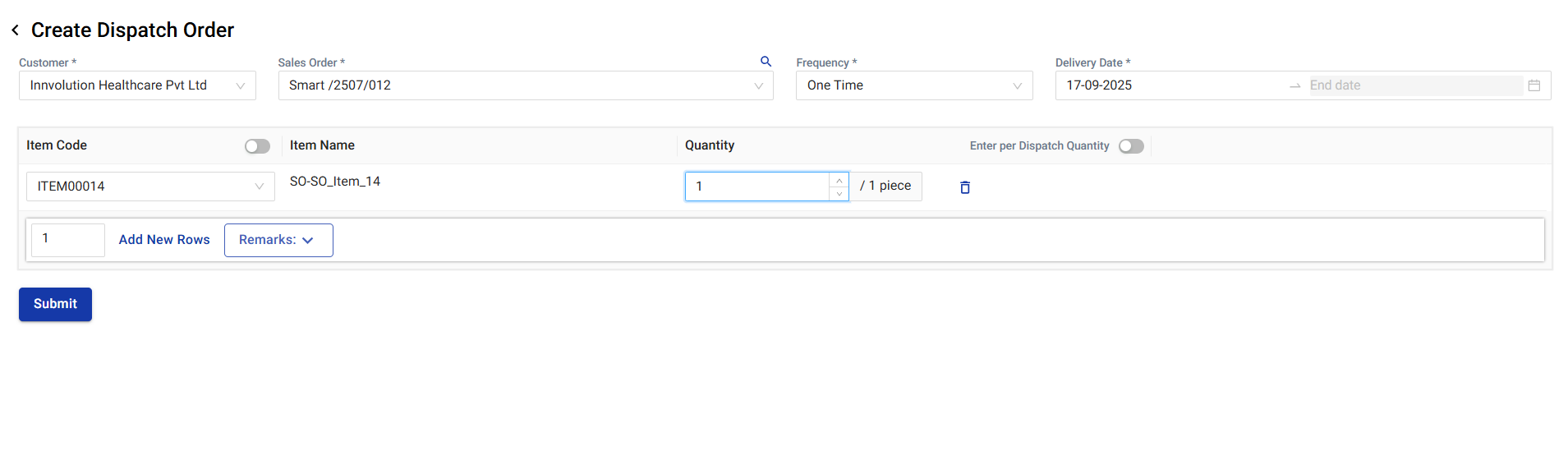

3) Fill Dispatch Order Details

• Customer → Select the customer name.



• Sales Order → Choose the linked Sales Order.



• Delivery Date → Select a single date or a date range (depending on frequency).



• Frequency → Define how often the dispatch should occur:



1. One Time → Single delivery on the selected date.



2. Daily → Dispatch repeats every day within the given date range.



3. Weekly → Dispatch repeats weekly on the chosen weekday(s).



4. Monthly → Dispatch repeats monthly on the same date.



4) Add Items to Dispatch Order

• Select Item Code / Item Name from the dropdown.



• Enter the Dispatch Quantity.



• To add more items, click Add New Rows.



• Add Remarks if required.



5) Submit the Dispatch Order

• After entering all details, click Submit.

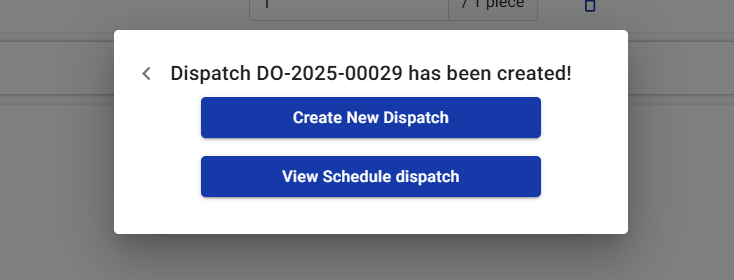

• A confirmation popup appears with the message:
  “Dispatch DO-2025-00029 has been created!”



• You can then choose:



• Create New Dispatch → Start another DO.



• View Schedule Dispatch → Go back to the calendar view.

Option B — From Sales Order (Dispatch Planning)

1) Open Sales Order

• Navigate to Orders → Sales Orders and open the required SO.

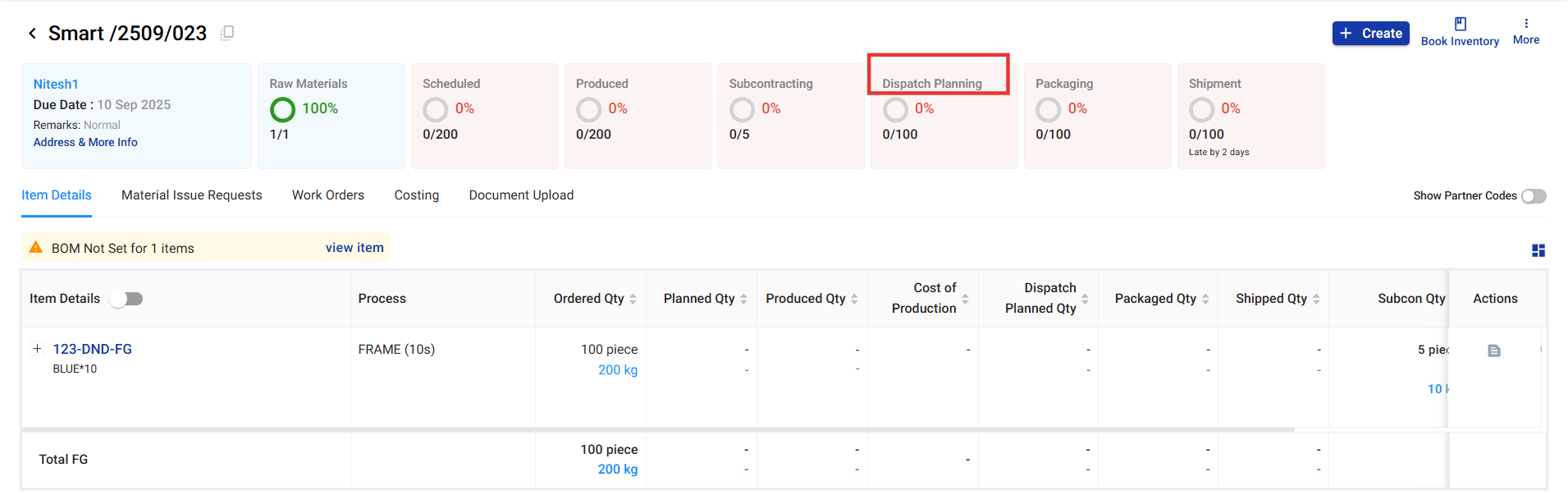

2) Go to Dispatch Planning

• Inside the Sales Order details screen, click Dispatch Planning (highlighted at the top).

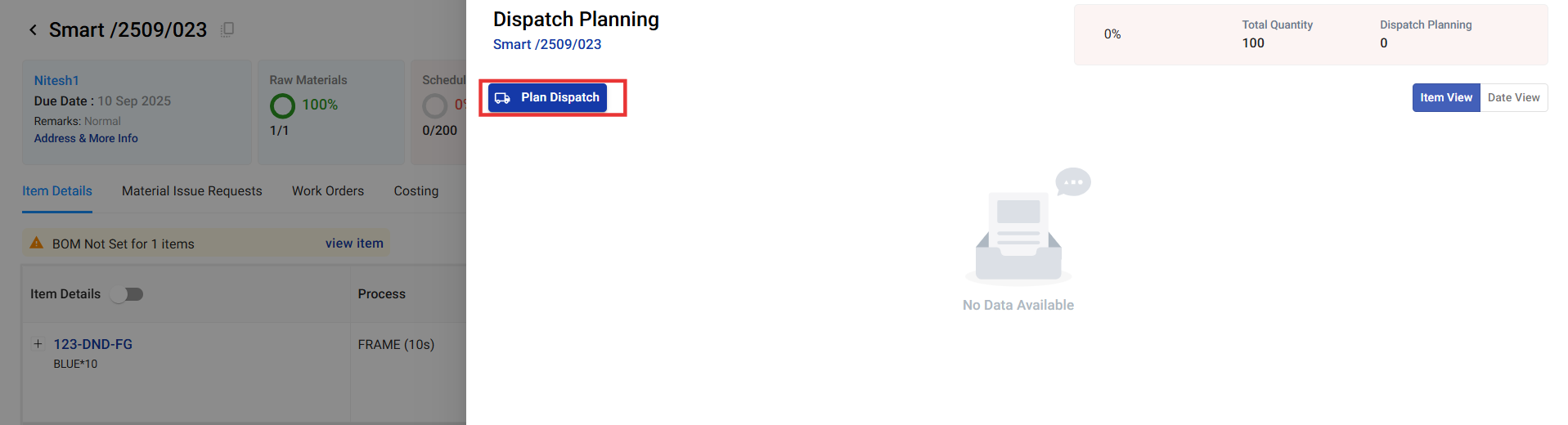

3) Plan Dispatch

• The system will show the items linked to the Sales Order.



• Click Plan Dispatch to create a new Dispatch Order.



• Fill in the dispatch details (Customer, Items, Quantity, Delivery Date, Frequency).



• Submit the dispatch plan.

Conclusion

The Dispatch Scheduling module allows you to:

• Plan dispatches on a calendar-based interface.



• Create Dispatch Orders linked directly to Sales Orders.



• Set recurring dispatch frequencies (daily, weekly, monthly).



• Track dispatch status with color-coded indicators for quick visibility.



This ensures smoother outbound logistics and better customer commitment tracking.
